Updated: June 7th 2012:  Cause for the issues found! Unsupported scenario having TFS 11 Beta side-by-side.  Uninstall TFS 11 Beta before or even after install of VS 2012 RC.

The Visual Studio RC has shown some install issues in some cases, particularly for those who upgrades from VS 11 Beta.  These issues are caused by also having TFS 11 Beta server installed on the same machine.  This is not a supported scenario.  What is good is that if you forget to uninstall TFS Beta 11 first, and get these issues, all that is required is to uninstall TFS 11 Beta, and VS 2012 RC will start working correctly!

I have listed the symptoms known now below, and will update if there are more issues.  Note that a repair will not fix the issue, and a Windows restore and subsequent reinstall may not fix it either.  The fixes below however, cures these issues, but you don’t have to do these now, just uninstall TFS 11 beta!


This forum post is about the same issues.

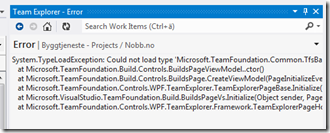

1. The Team Explorer Build node fails

When you try to access the Team Explorer Build node, you get a System.TypeLoadException error like this:

System.TypeLoadException: Could not load type 'Microsoft.TeamFoundation.Common.TfsBackgroundWorkerManager'


To solve this do as follows:

1. Open a command prompt as administrator

2. Go to your program files directory for VS 2012 and down to  the extension folder like:   C:\Program Files (x86)\Microsoft Visual Studio 11.0\Common7\IDE\CommonExtensions\Microsoft\TeamFoundation\Team Explorer

3. Run “gacutil –if Microsoft.TeamFoundation.Build.Controls.dll

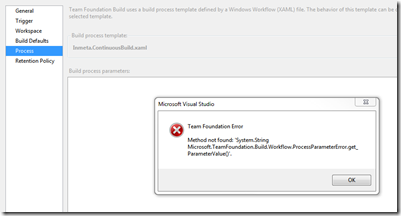

2. Accessing the Process node on Edit Build Definition fails

When you Edit a build definition and open the Process tab, it starts to load the custom assemblies (if you have any), then it stops before displaying the process parameters, with the messagebox : Team Foundation Error: Method not found: ‘System.String Microsoft.TeamFoundation.Build.Workflow.ProcessParameterError.get_ParameterValue()’


To solve this do as follows:

1. Go to C:\Program Files (x86)\Microsoft Visual Studio 11.0\Common7\IDE\PrivateAssemblies

2. Run gacutil /if Microsoft.TeamFoundation.Build.Workflow.dll

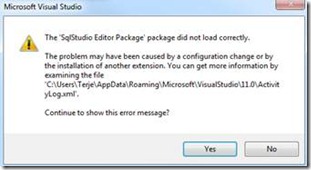

3. The SQL Editor gives loading error

When you start up VS 2012 RC you get a loading error message.  The same happens if you try to go from the menu to  SQL/Transact-SQL Editor/New Query.

The ‘SqlStudio Editor Package’ package did not load correctly, or  The ‘SqlStudio Profile Package’ package did not load correctly, or The ‘Microsoft.VisualStudio.Data.Tools.SqlLanguageServices.Package’ did not load correctly.  You might even get all of these.




To solve this do as follows:

1. Open Control Panel/Programs and Features

2. Locate the “Microsoft SQL Server 2012 Data-Tier App Framework

    (Note , you might find up to 4 such instances)


The ones with version numbers ending in 55 is from the SQL 2012 RC, the ones ending in 60 is from the SQL 2012 RTM.  There are two of each, one for x32 and one for x64.  Which is which no one knows.

3. Right click each of them, and select Repair.

(It would be nice if someone with this issue tries only the latest RTM ones, and see if that clears the error, and comment back to this post. I am out of non-functioning VS’s )


4.  Errors referring to some extension

You get errors referring to some extension that can’t be loaded, or can’t be found.  Check the activity log (see below), and verify there.  If you see yellow collision warnings there, the fix here should solve those too.

To solve these:

1. Open a Visual Studio 2012 command prompt

2.  Run:   devenv /resetsettings



How to check for errors using the log

Do as follows to get to the activity log for Visual studio 2012 RC

1. Open a Visual Studio 2012 command prompt

2. Run:   devenv /log

This starts up Visual Studio.

3. Go to %appdata%/Microsoft\VisualStudio\11.0


4. Double click the file named ActivityLog.xml.

It will start up in your browser, and be formatted using the xslt in the same directory.

5.  Look for items marked in red.

Example for Issue 1 :


posted on Tuesday, June 5, 2012 12:16 PM


# re: Fixing some Visual Studio 2012 RC install issues 6/15/2012 5:17 PM Charles Sterling
Great Post - thanks for the effort...I have made sure all these issue are in our feedback reports!

# re: Fixing some Visual Studio 2012 RC install issues 6/27/2012 6:41 PM Roger Lipscombe
I'm getting all 3 of the SQL Server errors. I only have the .60 versions of the "Data-Tier App Framework" installed. Repairing both of them seems to have fixed the error message.

# re: Fixing some Visual Studio 2010 install issues 12/3/2012 9:37 PM keith
So envdev.exe fires up and crashes. Following instructions to review ActivityLog.xml, there are red items such as ERROR "CreateInstance failed for package [Microsoft.VisualStudio.TeamFoundation.PowerTools.TfptPackage, Microsoft.VisualStudio.TeamFoundation.PowerTools, Version=, Culture=neutral, PublicKeyToken=b03f5f7f11d50a3a]"
My question is: can I run regedit and disable this item? If not, Is there a config file that I can access to disable this item? What is the best way to disable all items that are ERRORing in the ActivityLog.xml file. I should point out that yesterday I upgraded one of the *.vsix files yesterday and all my problems began straight after that. I would like to regress this upgrade but cant because devenv crashes every time it powers up.

# re: Fixing some Visual Studio 2012 RC install issues 12/3/2012 10:07 PM Terje
The tfpt Power Tools can be removed from the Add/Remove programs. They consists of multiple extensions, so deinstalling is easier.
To remove a single extension (vsix) you can remove the files from their install directories, or even just temporary rename the parent folder to disable all of them. You have a bunch at %LocalAppData%\Microsoft\VisualStudio\10.0\Extensions and another bunch at <VsInstallRootFolder>\Common7\IDE\Extensions.
Some extensions may be installed to a folder given by its registry key.
You could try to disable the extension, using the registry keys at HKEY_CURRENT_USER\Software\Microsoft\VisualStudio\10.0\ExtensionManager\EnabledExtensions.
For further details, see http://blogs.msdn.com/b/visualstudio/archive/2010/02/19/how-vsix-extensions-are-discovered-and-loaded-in-vs-2010.aspx
Note that you can also start Visual Studio in safe mode, which will then start without loading any extensions. Do this from a command prompt: Devenv /Safemode

Hope this helps !
